Dual Deck RJ45 Connector with 1000base Transformer and Cat6 Performance for Ethernet Networks

Name: Dual Deck RJ45 Connector with 1000base Transformer and Cat6 Performance for Ethernet Networks
Brand: DGKYD
Price: 1 USD

Buy cheap Dual Deck RJ45 Connector with 1000base Transformer and Cat6 Performance for Ethernet Networks product

Model Number : DGKYD21Q077DB2A4D068

Product Name : RJ45 Ethernet connector

Brand Name : DGKYD

Housing Material : PBT Polyester

MOQ : 1 piece

Delivery Time : 10 days

Gender : Female RJ45

Price : Please contact us to get the latest price.

Feature : High performance with magnetics and LED

RJ45 Suitable : for CAT5&6 Ethernet Cable or UTP

Filter : With Filter

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Payment Terms : T/T,D/P,D/A,L/C,Western Union,MoneyGram

Port Configuration : Dual Deck rj45 connector

Application : lan,bridge,PC,router,usb hub network rj45 and all ethernet devices

Supply Ability : 100K pcs/day

Performance Category : Cat6

storage temperature : -40°C~+85°C

Place of Origin : DongGuan of China

operation temperature : -40°C~+85°C

Packaging Details : Tray in Carton

Contact Now

Dual Deck 2 Port RJ45 Multiple Port Connectors with 1000BASE Transformer

Product Overview

Dual deck 2 Port RJ45 Multiple Port Connectors with 1000BASE Transformer OEM ODM DGKYD21Q077DB2A4D068

Part Number: DGKYD21Q077DB2A4D068

Download Product Documentation (PDF)

Technical Parameters

Parameter	Specification
Part Number	DGKYD21Q077DB2A4D068
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP/DOWN
Filter	With Filter
LED Option	With LED
LED Color	Green-Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	2X1 Port
Number of Positions	10
Jack Configuration	2X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

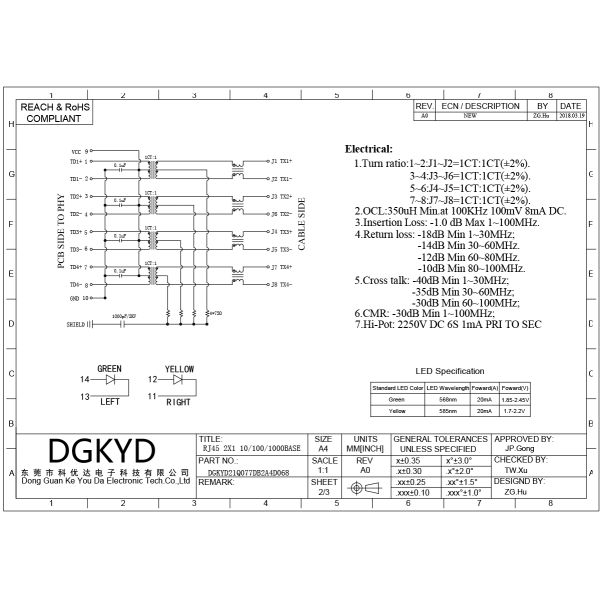

Product Images

Dual Deck RJ45 Connector with 1000base Transformer and Cat6 Performance for Ethernet Networks

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
